^{Getting Started → Header}

Header

The RoboDX™ header contains the: linkable logo, collapse/expand menu icon, search box, alerts, user guide, file alerts and a user section with a change password and logout functionality (Fig. 1).

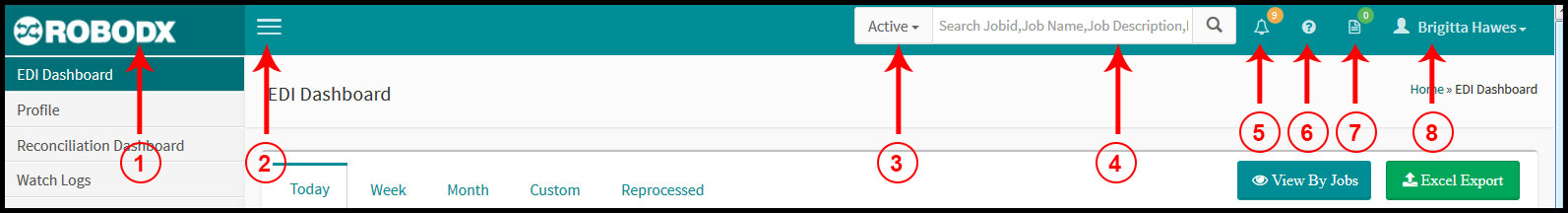

^{[Fig. 1]}

Header Logo (#1)

Clicking on RoboDX's header logo (Fig. 1 / #1) will always re-direct you back to the EDI Dashboard screen, the default landing page.

Toggle Side-Navigation Menu (#2)

• Click on the menu icon, and the side navigation menu will collapse (Fig. 1 / #2) .
• Click again on the menu icon to expand the menu.



Search (#3 & 4)

The header search has two functionalities:

1. Status of Job
2. Search

Make a Selection: Click on the Active button and make a selection (Fig. 1 / #3) of Active, Inactive or All:

Enter in Search Parameter: Next, click in the search-box field, and enter in your search parameter (Fig. 1 / #4). Search parameters include:

• Job ID
• Job Name



A drop down with potential results will appear just under the search-box area. Click on your selection. You will be redirected to the Job Setup screen for the Job ID or Job Name that you entered in the search-box field.

Alerts (#5)

The Alerts section will alert you of any files waiting for approval (Fig. 1 / #5).

• Click on the alerts — Alerts [Notifications / Chat] icon. A drop down will appear with any important alerts. Click on an alert to be taken to the page that requires your attention.



Help (#6)

Clicking on the help icon (Fig. 1 / #6) will open up the RoboDX™ User Guide in a separate browser window.

Files (#7)

Clicking on the file icon (Fig. 1 / #7) will provide a listing of all new jobs.

User Section (#8)

The user section provides the user with the Change Password and Sign Out functionality (Fig. 1 / #8).

• Click on the user section and a drop down appears.
• Click on the Sign Out option to sign out of the RoboDX™ application.
• Click on the Change Password option to change your password. The Change Password screen appears.
  • Type in your new password.
  • Confirm your new password by typing it in again in the Confirm Password field.
  • Click on the Update button to save your new password.
  • Click on the Cancel button to exit the Change Password functionality. You will be directed back to the landing page.
